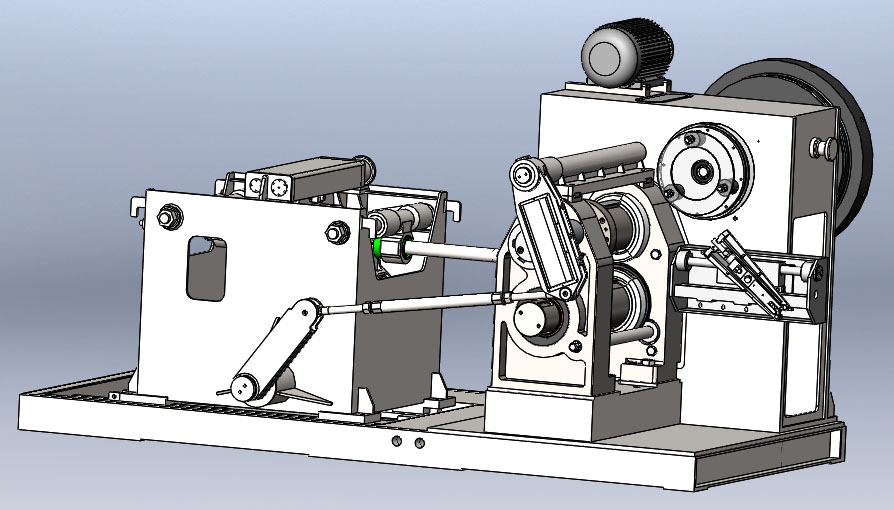

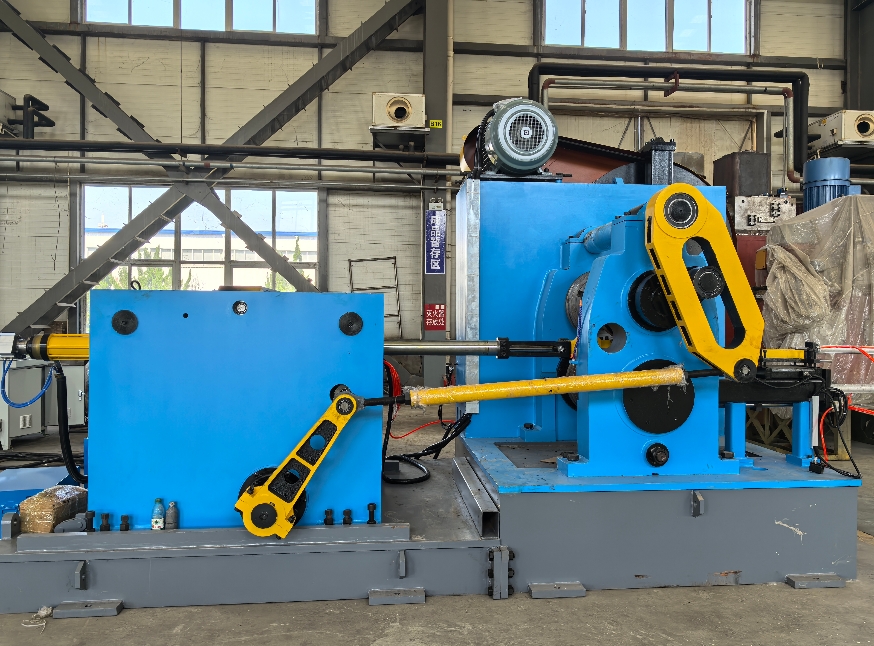

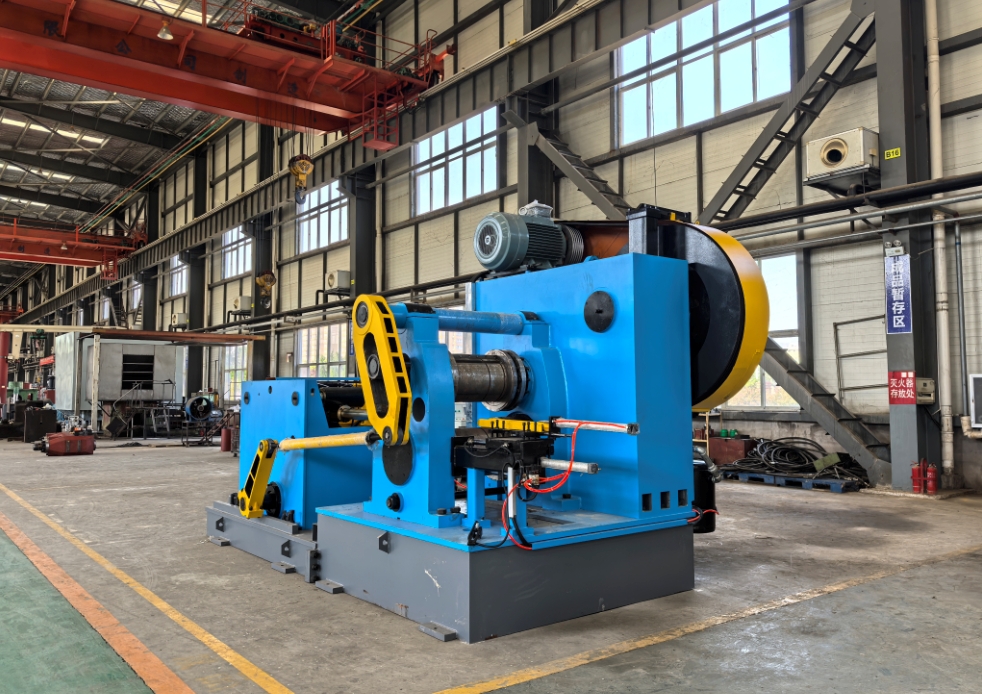

Introduction of Automatic Roll Forging Machine
ZGD series automatic roll forging machine is mainly used for the pre-forging of closed die forgings or do the final forgings. It can be composed forging production line with CNC forging hammer, hydrualic hammer, electric screw press etc forigng machine. It can be automation rolling forging production line match with automatic robot or arm. it's widely used in autobile, tractor, hand tools etc forging industry.
Futures of Anyang ZGD series forging rolls
Anyang ZGD series forging rolls with manipulator are continually optimized and improved products on the basis of Europe technology. By combining with anyang technologies on forming rolling and performing rolling processes die equipment and production line the forging roll can be applied in automobile, tractor, energy and hand-tooling etc forging industries. Several tens production lines for manufacturing automotive front axle connecting rod steering knuckle crankshaft and turbine blade have been provided to forging factories Enormous economic and social benefits have been achieved to our customers.
Parameter of forge roll machine
| Item | Unit | ZGD-370 | ZGD-460 | ZGD-560 | ZGD-680 | ZGD-1000 | ZGD-1250 | |
| Roller outside diameter | mm | 370 | 460 | 560 | 680 | 1000 | 1250 | |
|
Max.width commission for rolling |
mm | 500 | 570 | 700 | 850 | 1200 | 1400 | |
| Max.length of piece | mm | 570 | 710 | 870 | 1050 | 1920 | 2500 | |
| Adjustment distance | mm | 15 | 17 | 20 | 20 | 25 | 20 | |
| Speed of roller | rpm | 62 | 56 | 52 | 40/25 | 15/30 | 8 | |
| Max.blank dimension | Square | mm | 50 | 65 | 90 | 110 | 140 | 180 |
| Round | mm | φ55 | φ75 | φ100 | φ125 | φ160 | φ200 | |
| Lengthways stroke of arm | mm | 490 | 630 | 758 | 800 | 7000 | 7000 | |
| Horizontal stroke of arm | mm | 435 | 505 | 550 | 750 | 920 | 1420 | |
| Adjustable on vertical and horizontal | YES | YES | YES | YES | YES | YES | ||
| Adjustment on vertical | mm | 200 | 200 | 400 | non-ajustable | non-ajustable | non-ajustable | |
| Single lateral stroke | mm | ajustable | ajustable | ajustable | ajustable | ajustable | ajustable | |
| Max. load capacity | kg | 12 | 12 | 30 | 50 | 150 | 250 | |
| Main motor power | kw | 18.5 | 22 | 55 | 132 | 250 | 355 | |
| Total weight | Ton | 10 | 12.5 | 22 | 60 | 70 | 120 | |
Roll Forging Machine Working Video
Anyang Roll Forging Machine and CNC closed die hammer production line make connecting rod.
