Precision Billet Cutting Machine

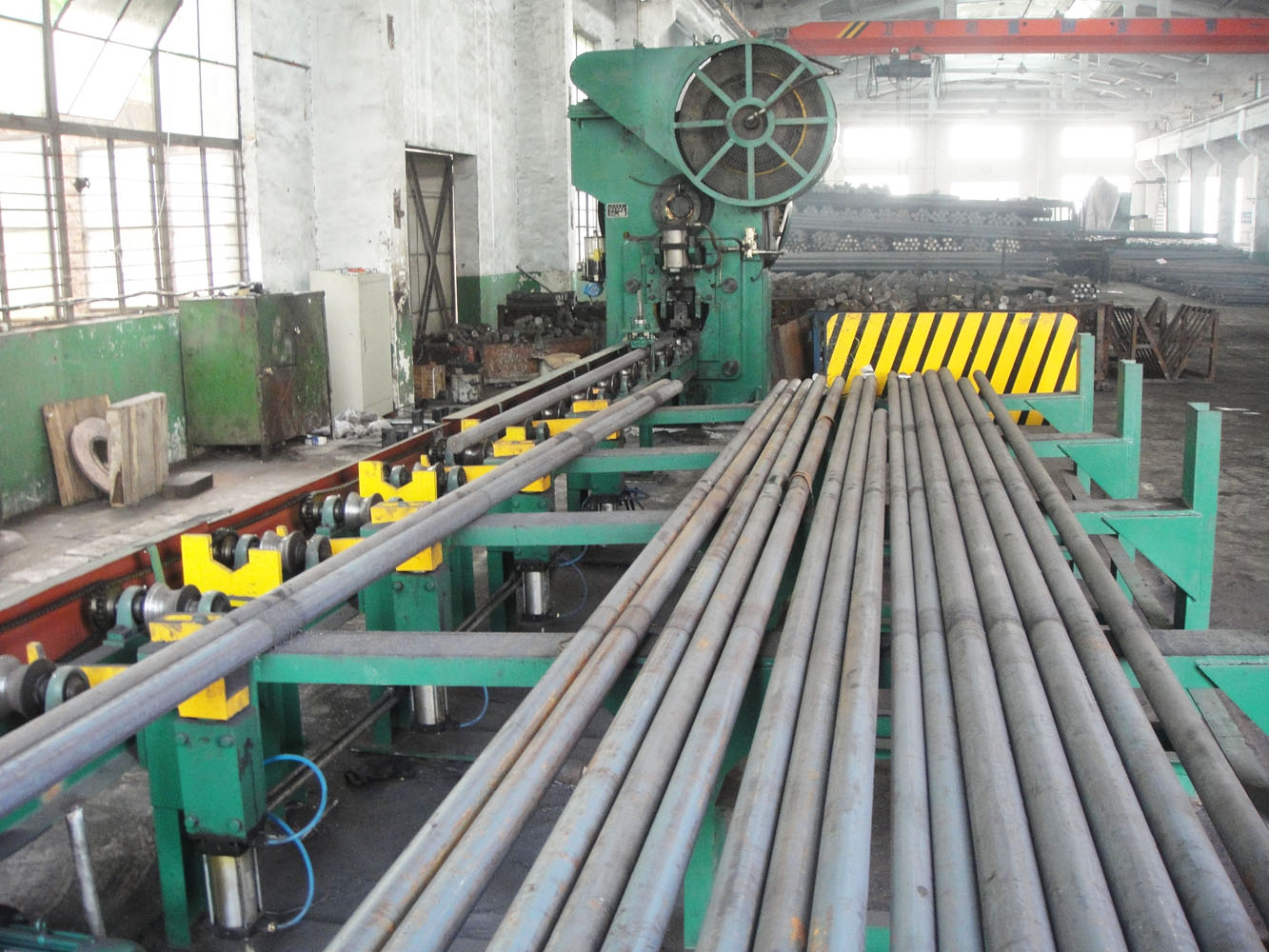

Introduction of Billet Cutting Machine:

Billet cutting machine ( billet shearing machine )  is a kind of cold shearing machine, which is used to cut steel bar for the closed die forging production line. With PLC control, automatic feeding, automatic cutting , automatic counting, automatic lubrication and overloading protection .

Billet Cutting Machine Features:

  • PLC control
  • Section slope <=3 °; weight error within 0.5%
  • High efficiency cutting
  • Safety working
  • Energy saving
  • Low noise
  • Reliable operation and easy maintenance

Parameters of billet shear:

Model

Q42-160

Q42-250

Q42-350

Q42-500

Q42-800

Q42-1000

Q42-1250

Q42-1600

Nominal Cutting Force

KN

1600

2500

3500

5000

8000

10000

12500

16000

Max. Cutting Diameter

mm

φ50

φ65

φ90

φ100

φ130

φ150

φ170

φ200

Continuous strokes

/min

45

45

33

18

18

15

15

15

Cutting Length

mm

50-320

65-320

65-320

65-320

65-320

80-500

700-2800

900-2800

Main motor power

KW

11

18.5

30

45

55

75

90

160

Machine outer size
L x W x H

mm

10220
*1770
*2535

10350
*2050
*2890

10400
*3500
*3200

12000
*4300
*3200

11300
*4500
*4750

8745
*3920
*4150

9300
*4050
*5600

6000
*5000
*6300
